Article N°: 2004
Supplier: ALFRA
Type: KFT 250
Status: 6.0 New
Remarks:

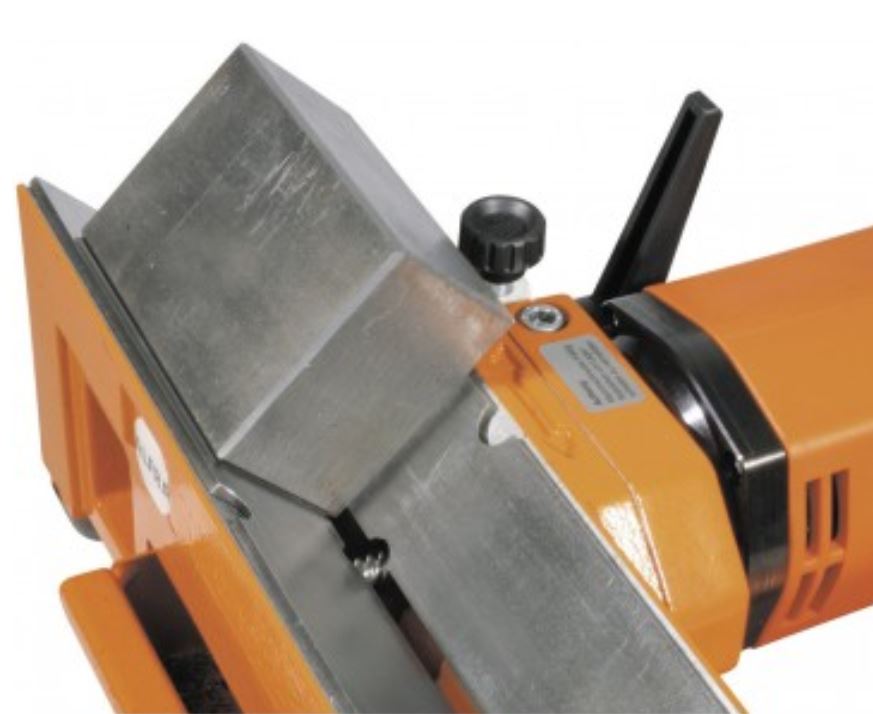

A simple and economical deburring device for light to medium requirements.

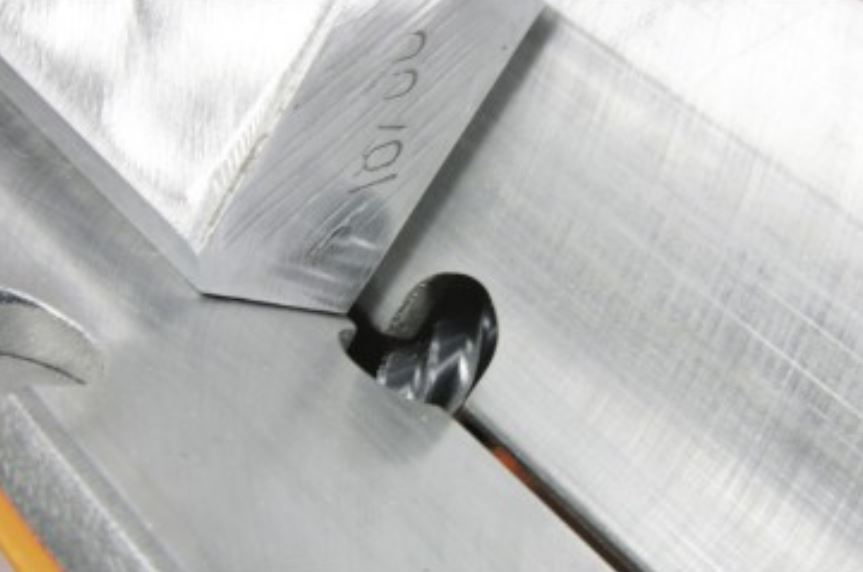

For obtaining exterior bevel surfaces with hard metal shank cutters.
Deburring range: Degree of chamfer 45 °
Support on position I prisms: Material thicknesses from 4.5 mm
Support on prisms position II: Material thicknesses from 1.0 mm
Supported on prisms: Length = 250 mm / Guide rail: Width = 40 mm
Max chamfer width: 5 mm, depending on material
Also for stainless steel with the selection of milling machine and
setting the appropriate number of revolutions and cutting distribution
(coat the edges with cutting oil).
Weight: 5.0 kg
High power drive motor: 1.050 W
Triple ball bearing
Double Ball Bearing Milling Spindle / Milling Spindle with High Speed Lubrication
Standardized clamping flange Ø: 43 mm
Continuous adjustment of the number of revolutions: 8,000 - 25,000 min-1
Motor voltage: 230 V 50 / 60Hz
Full-wave electronic system - when loaded, the dynamo / tachometer provides additional power.
Scope of delivery: Edge deburring device KFT 250 / with fine adjustment of the milling depth / 1 set of guide rails / 1 collet 8 mm Ø and clamping nut / 1 chip collection container / 1 set service tools / 1 user manual
Selling price/pce: 703.00 CHF excl tax
