EQUIPEMENTS Pro
Article N°: 1141
Supplier: MEP
Type: TIGER 372 SX EVO
Status: 6.0 New
Remarks:
TIGER 372 SX evo cut-off machine, semi-automatic vertical, for cutting steel from 60 ° left to 45 ° right, with HSS saw mill.
- This machine is microprocessor-based with a controlled axis and represents the latest generation of MEP project controller designed exclusively for its own semi-automatic saws.
OPERATION: the start of the cycle controlled by pushbutton gives rise to the following operations:
- closing the vice and starting the engine - lowering the head to perform the cut - stopping the engine - returning the head - opening the vice.
- DOWN-UP CYCLE: by acting on the SEMIAUTOMATIC cycle, the DOWN push button stops the head and the rotation of the tape at the end of the cut while keeping the vice closed and complete the opening of the vice and the return at the top of the head among the UP push button.

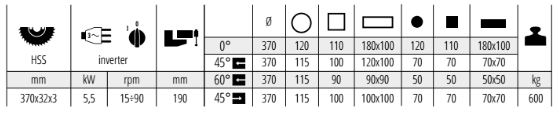

Catalog and technical characteristics: See "Find out more"
At your disposal to advise you and make a detailed offer
